3 kg
Medium-lift capacity
32 km
With full 3 kg payload
32 mph
Rated wind resistance
70 min
Max flight time
Efficiency in forward flight

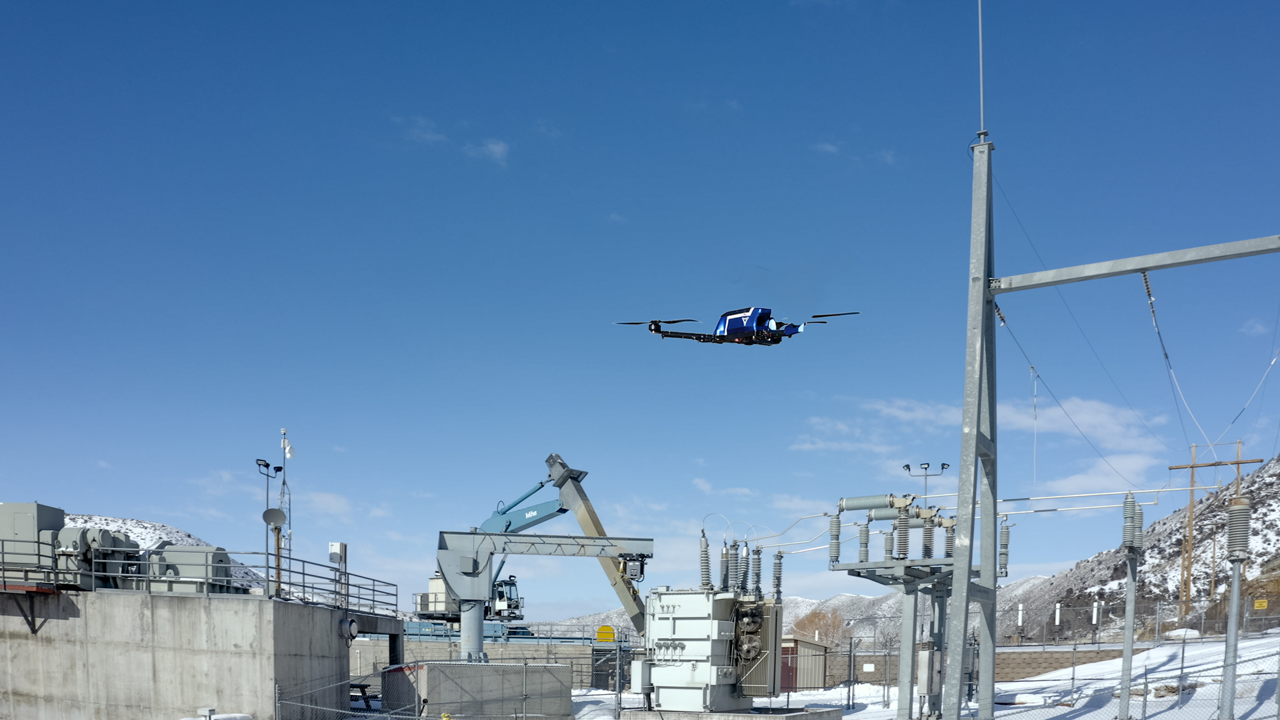

Three large rotors give the Vulcan SX an efficient path through the air. The tricopter architecture reduces unnecessary drag and helps preserve flight time during long survey lines, corridor work, and wide-area inspection missions.
High-speed retractable landing gear improves cruise performance and clears the sensor’s field of view in flight.
Why the Tri?
We have extended and upgraded the core principles of the tricopter’s superior design, turning them into the best drone in the medium-lift category. Meet Vulcan SX.
Precise flight handling

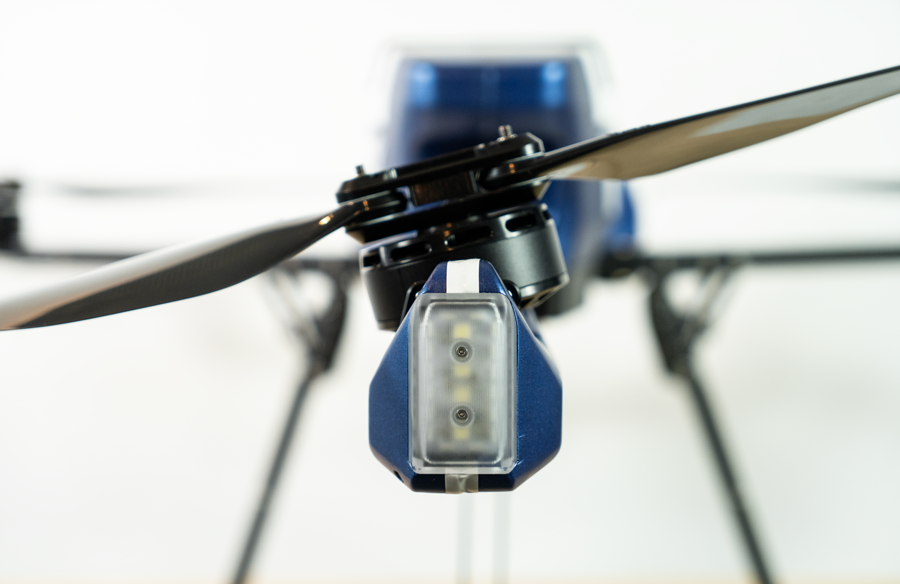

The pivoting rear yaw system gives the pilot direct, authoritative yaw control. Vulcan SX moves smoothly between forward flight, turns, and stable hover without depending solely on differential motor speed.
That control supports consistent flight paths and dependable sensor positioning when data quality matters.
Built to travel
The three-arm architecture folds into a compact transport profile. Vulcan SX ships in a custom Pelican case designed for hand-carry and checked-baggage transport, with batteries handled separately according to airline requirements.

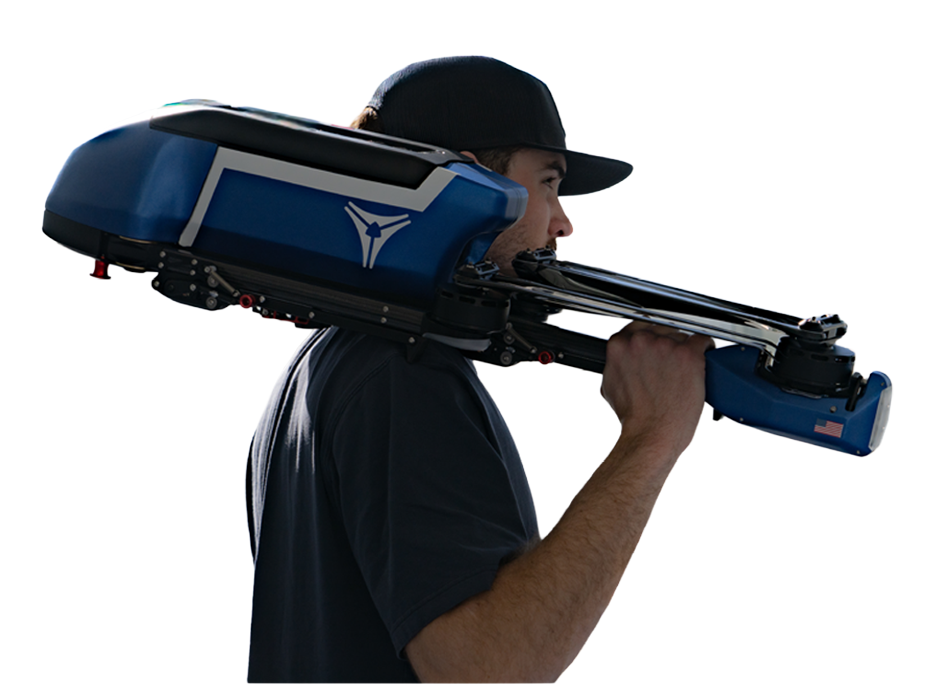

The aircraft can also be removed from the case for backpack or shoulder carry in the field.
Talk to someone who’s flown it
Key specs
Medium-lift platform with up to 3 kg payload capacity
Up to 70 minutes flight time*
Up to 32 km cruise distance with a fully loaded 3 kg payload*
Handles wind up to 32 mph
IP54 rated and cleared for flight in rain
Retractable landing gear provides 360° sensor visibility
Field-swappable Smart Dovetail payload interface
Flight Deck mission planning software included with no subscription
NDAA compliant
Designed, manufactured, assembled, tested, and serviced in the USA
What’s in the case
Vulcan SX aircraft
Smart Battery
Battery charger
Vision Aerial Ground Control Station
Custom Pelican transport case
Mission payloads and field kits are configured around your operational requirements. Explore payloads here.
One aircraft. Multiple missions.
Vulcan SX carries one field-swappable payload at a time for mapping, LiDAR, thermal inspection, optical gas imaging, hyperspectral and multispectral imaging, and public safety missions.
Explore payloads for any mission:
Explore more payloads here
Why it works in the field
Mission ready.
Ships as a complete flight system.
Payload versatile.
Change sensors as the work changes.
Built to travel.
Packs into a custom Pelican case.
Field supported.
Built and serviced by Vision Aerial in the USA.
